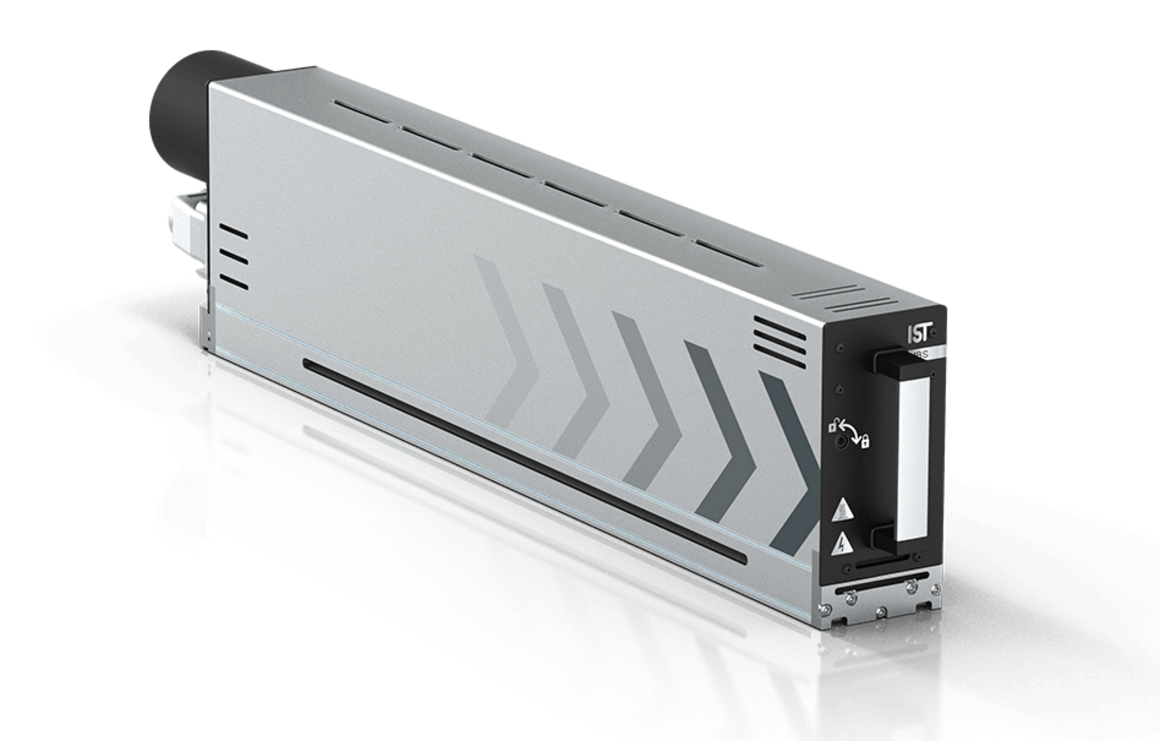

The air-cooled MBSc (Modular Building Block System compact) is based on a modular system and can be used variably. With a high output of 200 W/cm, the compact and powerful UV unit can be used wherever users place high demands on curing. The MBSc has specially doped lamps whose ballasts are precisely matched to them. The URS swivel reflectors used consist of so-called cold light mirrors with more than 60 different metal oxide layers. The particularly resistant reflectors are characterised by very long service lives and optimum heat management. URS technology has a significantly higher reflectance than conventional reflectors.
Like all new curing units from IST METZ, the modular MBSc is equipped with the Smart Control system user interface. This makes system operation clear, easy to use and enables uncomplicated integration into the control system of all common types of printing presses.

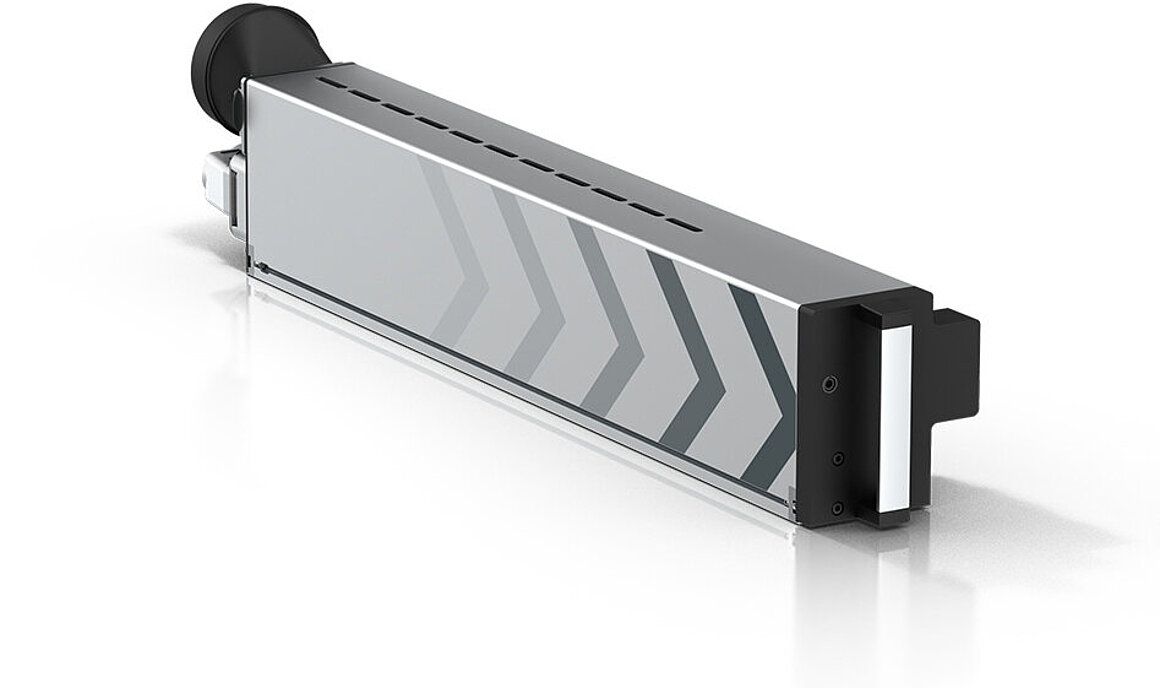

The inner housing of the MBSc with lamp, reflector and swivel drive can simply be inserted into the outer housing. All supply connections are automatically pluggable. The exhaust air volume and the air flow for cooling the unit have also been optimised to reduce soiling of the lamp and reflector. Machine downtimes can thus be reduced to a minimum.
